Flow Meters

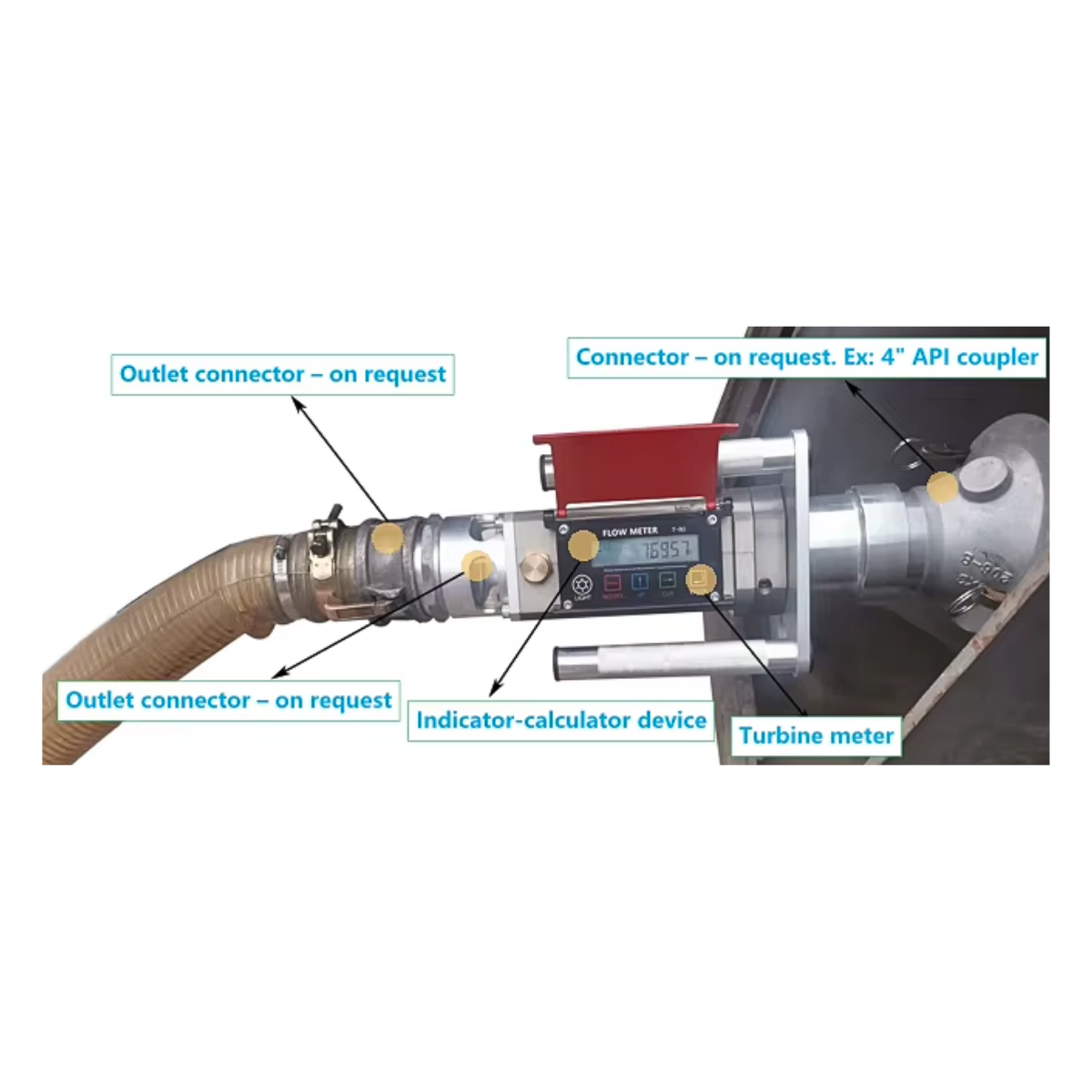

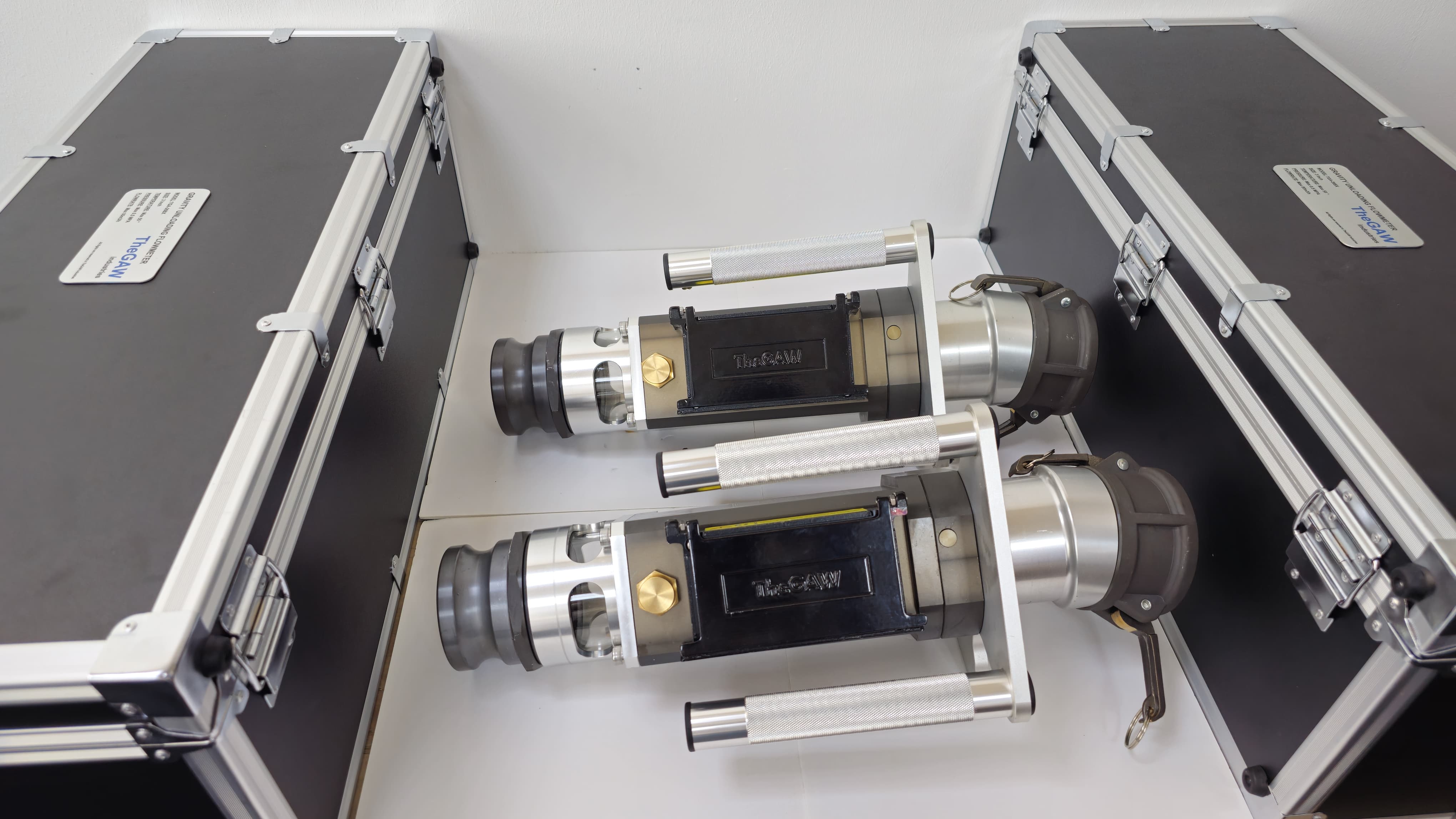

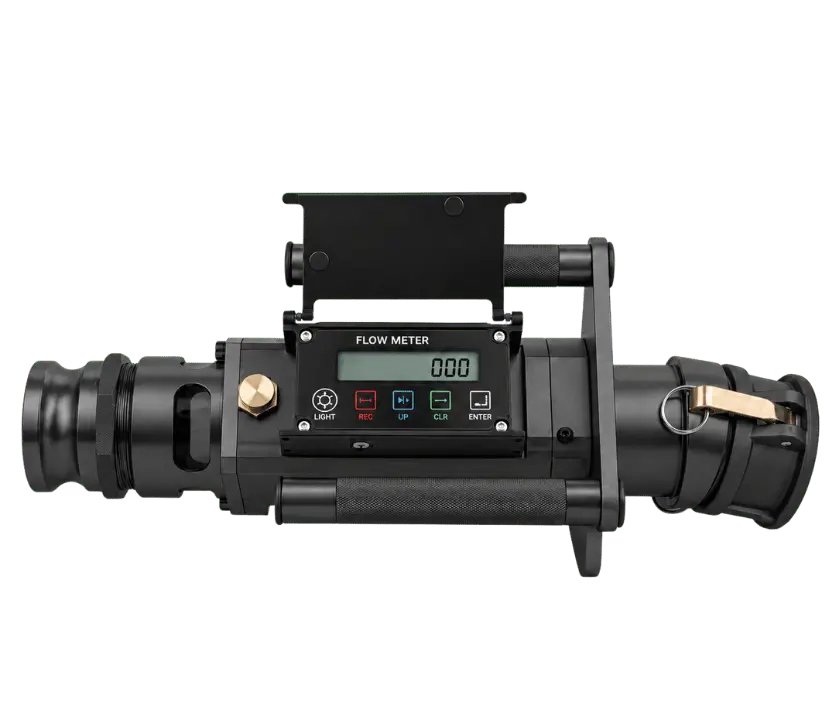

GRAVITY UNLOADING FLOW METER

The portable flowmeter is designed for gravity flow unloading of tankers at gas stations and pipeline measurement, handling various oil products (excluding water). Its versatile design ensures simple, flexible installation and operation, making it easy to use across a range of settings. Equipped with Bluetooth connectivity and historical data tracking, it enables real-time monitoring and analysis. With high precision, reliable performance, and a long service life, it connects directly to tank outlets without requiring a pump, offering seamless and efficient operation.

Technical Specification:

Specification	Value
Flow Range	130–1300 L/min
Accuracy	±0.2%
Repeatability	≤0.02%
Weight	6 kg
Protection Grade	IP65

POSITIVE DISPLACEMENT FLOWMETER

Engineered for precision, reliability, and versatility, Positive Displacement Flow Meters are ideal for applications like custody transfer, refineries, pipelines, lubricants, marine operations, and terminals. Designed for heavy-duty use, they provide accurate, consistent measurements even with challenging fluids such as crude oil, heavy fuels, and high-viscosity substances.

Specifications

Positive displacement flowmeter	Size	Flow Range	Volume per Revolution	Working Temperature	Max Pressure	Accuracy	Repeatability	Measurement
TGA-40	40 mm / 1 1/2"	25–250 L/min	0.309 L	-40°C to 71°C	10 bar / 150 PSI	±0.2%	≤0.05%	Liter / Gallon
TGA-50	50 mm / 2"	38–380 L/min	0.681 L	-40°C to 71°C	10 bar / 150 PSI	±0.2%	≤0.05%	Liter / Gallon
TGA-80	80 mm / 3"	75–750 L/min	1.839 L	-40°C to 71°C	10 bar / 150 PSI	±0.2%	≤0.05%	Liter / Gallon
TGA-100	100 mm / 4"	130–1300 L/min	5.102 L	-40°C to 71°C	10 bar / 150 PSI	±0.2%	≤0.05%	Liter / Gallon

Low Profile Link/Cassette Selection Chart

Powerpacks

Consumables

Features

Gravity Unloading Flowmeter

Designed for gravity-fed unloading applications
Suitable for fuel tanker unloading, depot receiving, and terminal operations
Measures flow without requiring a pump
Compatible with diesel, petrol, kerosene, aviation fuel, and clean liquid products
Can be integrated with batch controllers, printers, PLC, SCADA, and terminal automation systems
Robust construction for industrial and oil terminal environments
Available with mechanical or electronic display options

Positive Displacement Flowmeter

High-accuracy flow measurement for liquid transfer applications
Positive displacement measuring principle for repeatable results
Suitable for custody transfer, batching, loading, and unloading
Compatible with diesel, petrol, lubricants, chemicals, solvents, and refined petroleum products
Performs well at low, medium, and varying flow rates
Supports integration with electronic registers, batch controllers, PLC, SCADA, and terminal automation systems
Heavy-duty design for oil and gas, chemical, and industrial applications

Benefits

Gravity Unloading Flowmeter

Ensures accurate measurement during gravity unloading
Reduces product loss during fuel receiving operations
Minimizes manual measurement errors and disputes
Improves inventory control and stock reconciliation
Supports faster and more transparent unloading operations
Helps maintain reliable transaction records
Reduces downtime with simple and low-maintenance operation

Positive Displacement Flowmeter

Provides precise measurement for commercial transactions
Improves billing accuracy and operational accountability
Reduces fuel loss, leakage-related uncertainty, and measurement disputes
Enhances stock reconciliation and inventory management
Supports automation of loading and unloading processes
Delivers consistent performance in demanding operating conditions
Increases customer confidence through reliable and transparent metering

Applications
